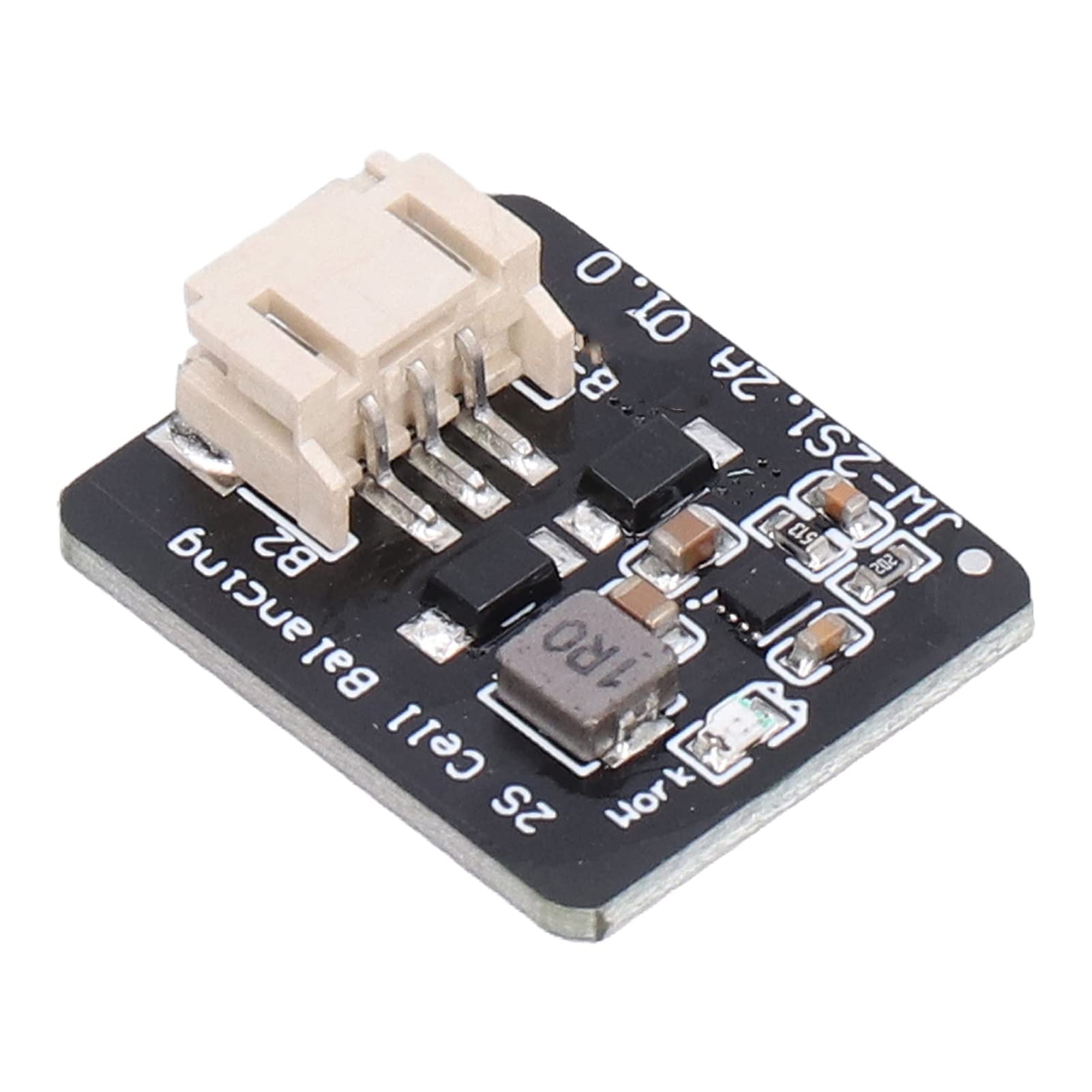

2S Active Equalizer for Ternary & Iron Lithium Batteries - Low Power Consumption, Easy Wiring Battery Balancer | Perfect for Solar Power Systems, EVs, and Energy Storage Solutions

Feature:1. Inductive Transfer: The board is an inductive energy transfer balance board, 1.2A high current energy transfer battery voltage balancer.2. For Balancing Voltage: Can help to significantly balance the battery voltage and improve the overall efficiency of the battery pack.3. Low Internal Resistance: Built in improved ultra low internal resistance MOS, balance current is 0‑1.2A, the smaller the voltage difference, the smaller the balance current.4. Low Power Consumption: Static power consumption does not exceed 20uA, with balance indicator, universal for ternary iron lithium battery.5. Simple Operation: When the battery error voltage is higher than 0.1V, the balancing work starts until the error stops at 30mv.How to Use:Balance Instructions: 1. When the equalization light is on, the equalization work is turned on.2. The equalization light goes out and the equalization circuit sleeps.3. The equalization light flashes, the string is dropped, or the circuit is faulty.Wiring Definition: B‑, the total negative pole of the battery pack (the negative pole of the battery)B1, the positive terminal of the first batteryB2, the positive terminal of the second batteryB3...and so onSpecification:Item Type: Active EqualizerMaterial: PCB, copperPurpose: Inductive energy transfer balance board, high current 1.2A energy transfer batt
