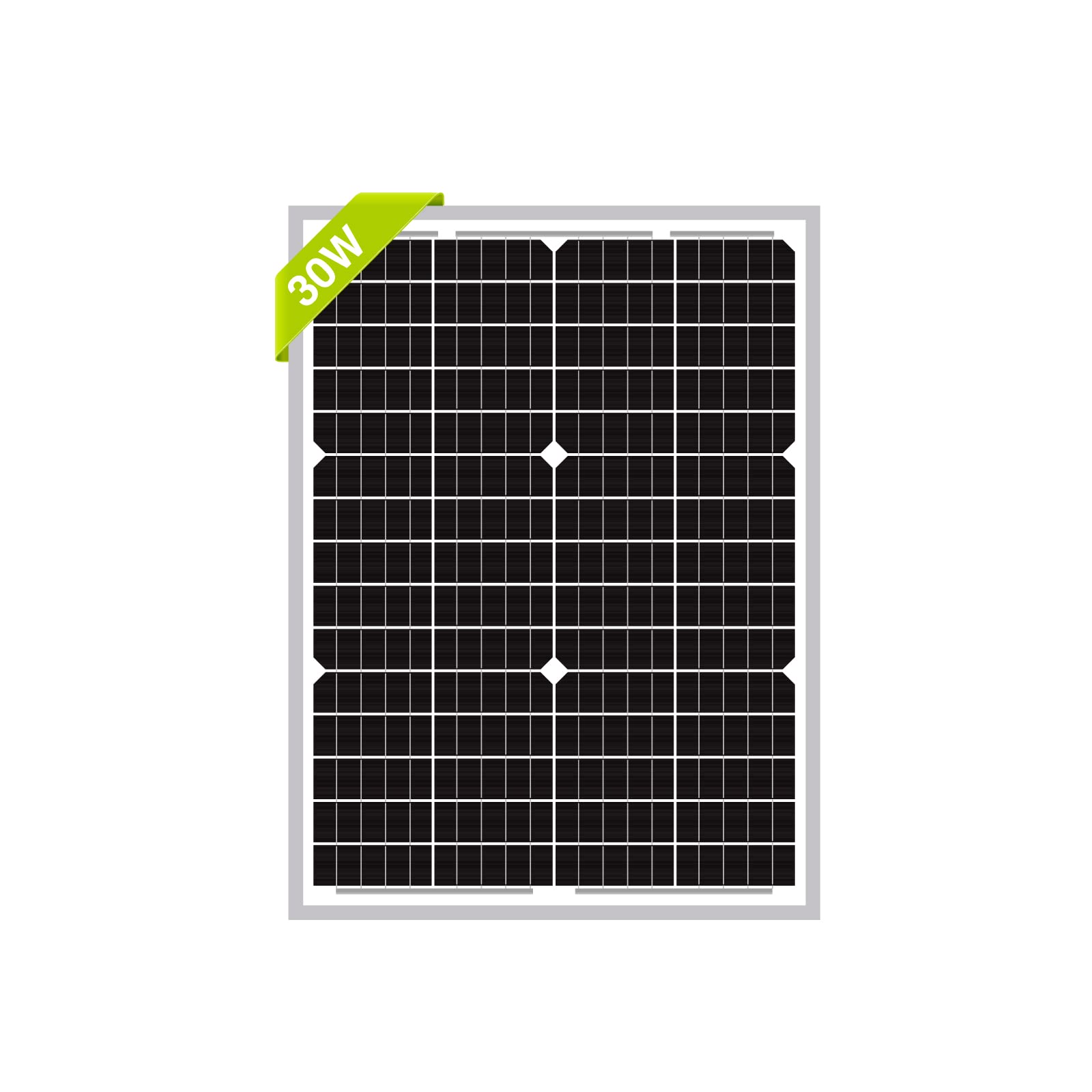

Newpowa 30W High-Efficiency Monocrystalline Solar Panel for Off-Grid Systems - Charges 24V Batteries in RV, Boat, Camper, Trailer & Gate Opener | Perfect for Outdoor Adventures & Remote Power Needs

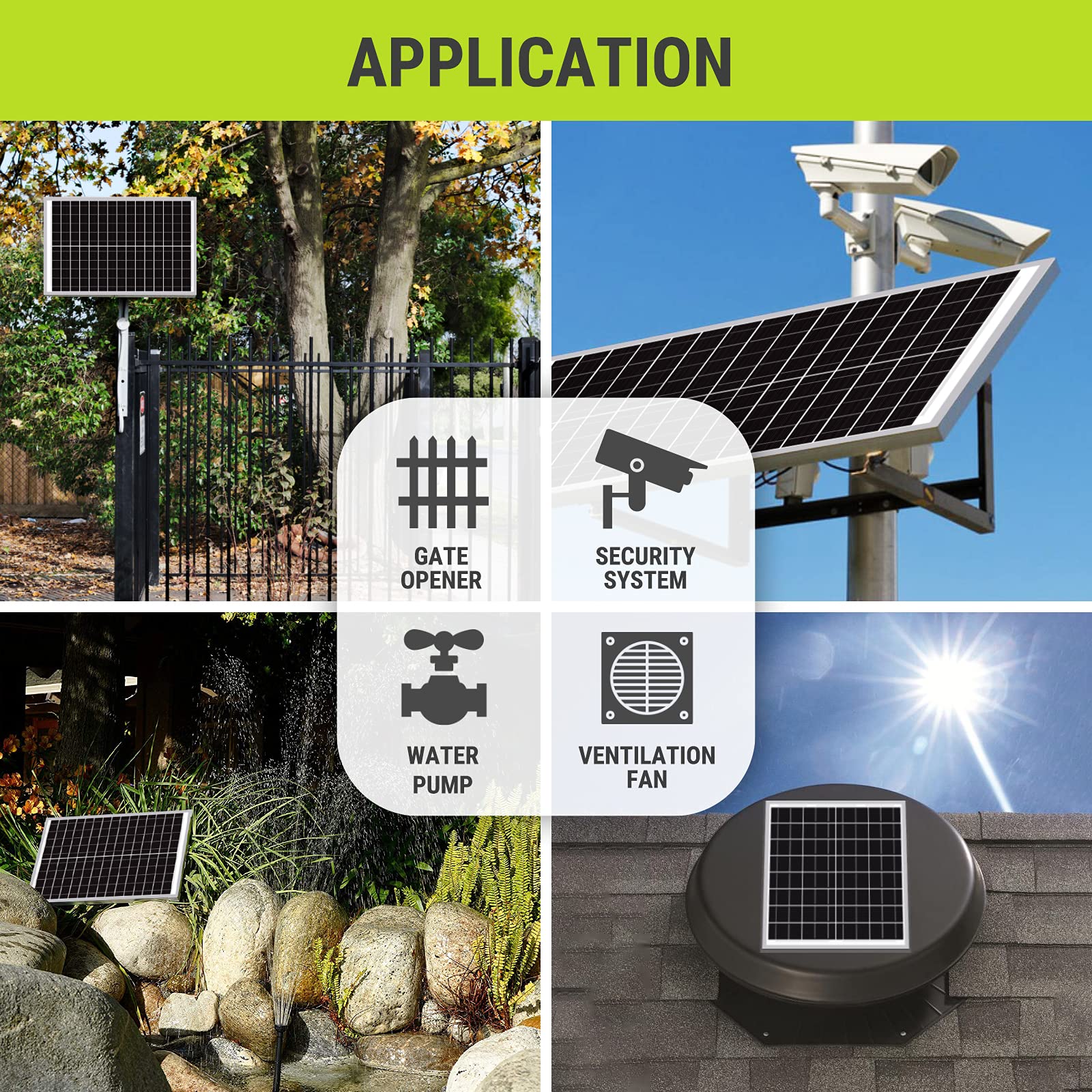

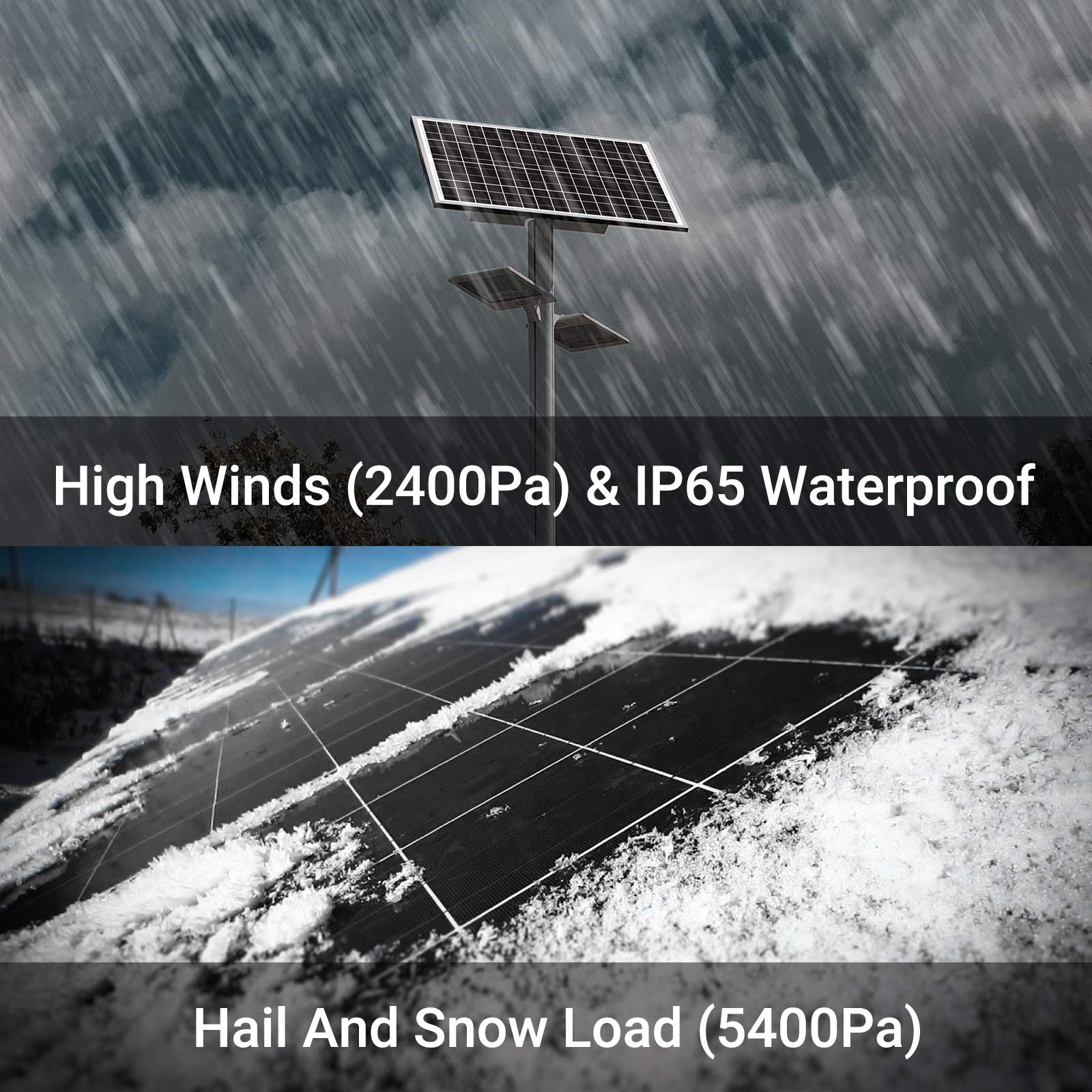

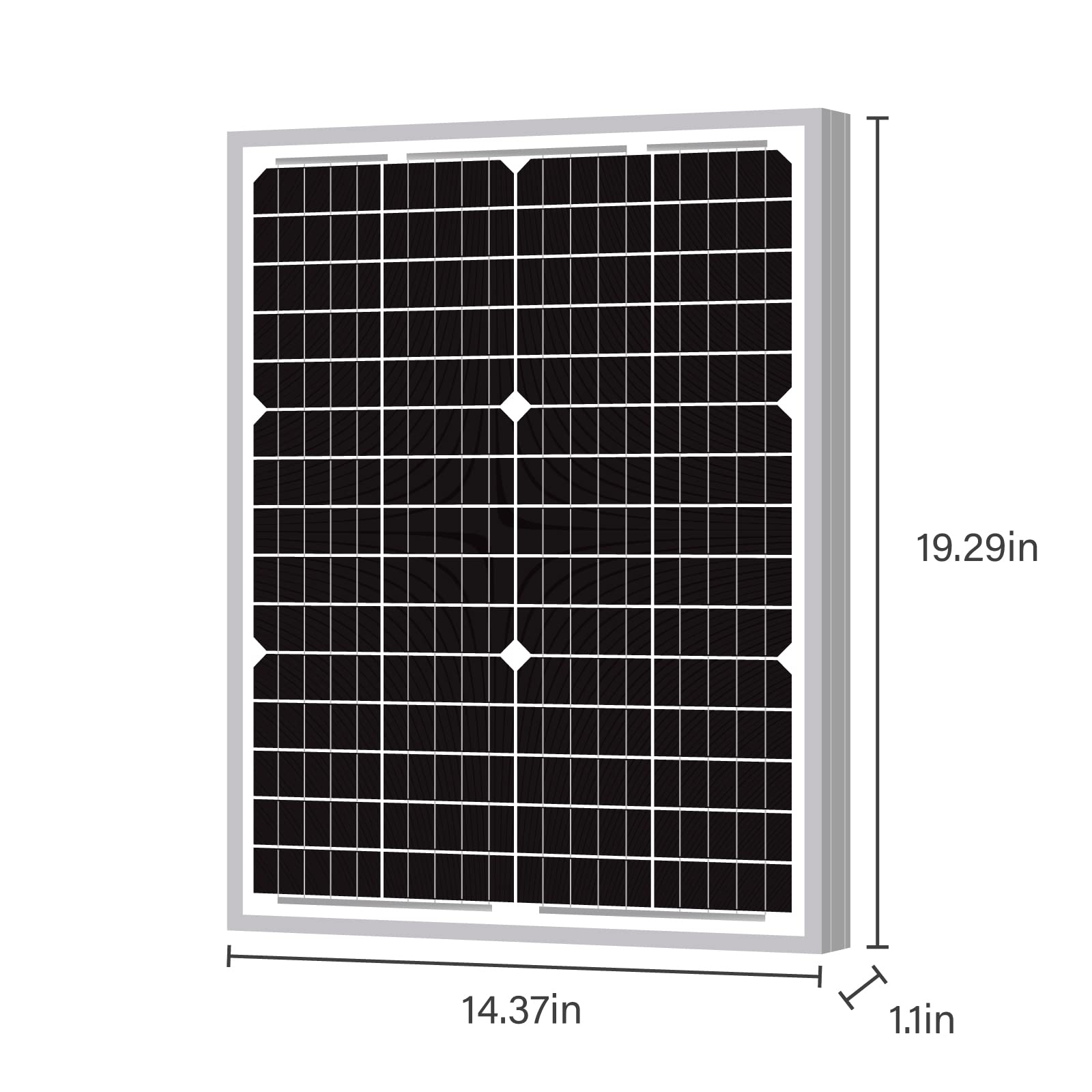

Easy Installine Pre-attached 3ft bare ends wire, and pre-drilled mounting holes on the frame allow for easy and quick installationCompatible with Newpowa z-bracket, tilt adjustable mount, and pole/wall bracket, the panel can be installed for various applications Durable Heavy-duty anodized frame Rugged design to withstand high winds (2400Pa), hail, and snow load (5400Pa)Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan Versatile Supported by a number of mounting options, the panel can adapt flat surface mounts (Z-bracket, tilt adjustable bracket) and pole/wall installationDespite the smaller wattage output, the panel can be used for many applications such as gate openers, security system, solar lighting, electric fences, battery maintainer, etc. Specification Dimension: 19.29*14.37*1.10 inchesWeight: 4.78 lbsMax Power Output(W): 30WVoltage MPP Vmp(V): 35.30VCurrent MPP Imp(A): 0.85AVoltage Open Circuit Voc(V): 40.49VShort Circuit Current Isc(A): 0.9A FAQ 1: Does a Solar Panel produce full power? A: In most cases, it is normal for a solar panel to not be able to provide its full nominal power. Factors affecting the performance of solar panels: Peak Sun Hours， Sunlight Angle， Operating Temperature， Installation Angle， Panel Shading， Adjacent Buildings Etc... 2: How to test a solar panel? A: The ideal conditions: Test in the noon, under a clear sky, panels should be at 25 degrees tilted towards the sun, and the battery is at a low state/less than 40% SOC. Disconnect the solar panel from any other loads, using a multimeter to test the panel's current and voltage. 3: How does temperature affect solar panel efficiency? A: Solar panels are generally tested at about 77°F/25°C and are rated to perform at peak efficiency between 59°F/15°C and 95°F/35°C. Temperature going up or down will change the efficiency of the panels. For example, if the temperature coefficient of power is -0.5%, then the panel maximum power will be reduced by 0.5% for every 50°F/10°C rise. 4: How to install our solar panels using different brackets? A: There are mounting holes on the panel frame for easy installation using a variety of brackets. Most compatible with Newpowa's Z-mount, tilt-adjustable mount, and pole/wall mount, making panel mounting suitable for a variety of applications. 5: Can I connect different solar panels together? A: Though mixing different solar panels is not recommended, the mismatch can be achievable as long as each panel’s electrical parameters (voltage, current, wattage) are carefully considered. 5W Mono Solar Panel 10W Mono Solar Panel 20W Mono Solar Panel 25W Mono Solar Panel 50W Mono Solar Panel Buying Options Add to Cart Add to Cart Buying Options Add to Cart Customer Reviews 4.5 out of 5 stars 616 4.5 out of 5 stars 616 4.6 out of 5 stars 396 4.6 out of 5 stars 442 4.5 out of 5 stars 251 Price — no data $26.49$26.49 $36.99$36.99 — no data $59.50$59.50 MAX Watt 5W 10W 20W 25W 50W Dimensions (in.) 8.86x7.68x0.71 15.37x7.68x0.91 15.35x14.17x0.91 15.94x14.37x0.91 29.13*14.37*1.18 Weight (lbs) 1.25 2.00 3.63 3.80 7.3 System Voltage 12V 12V 12V 12V 12V
