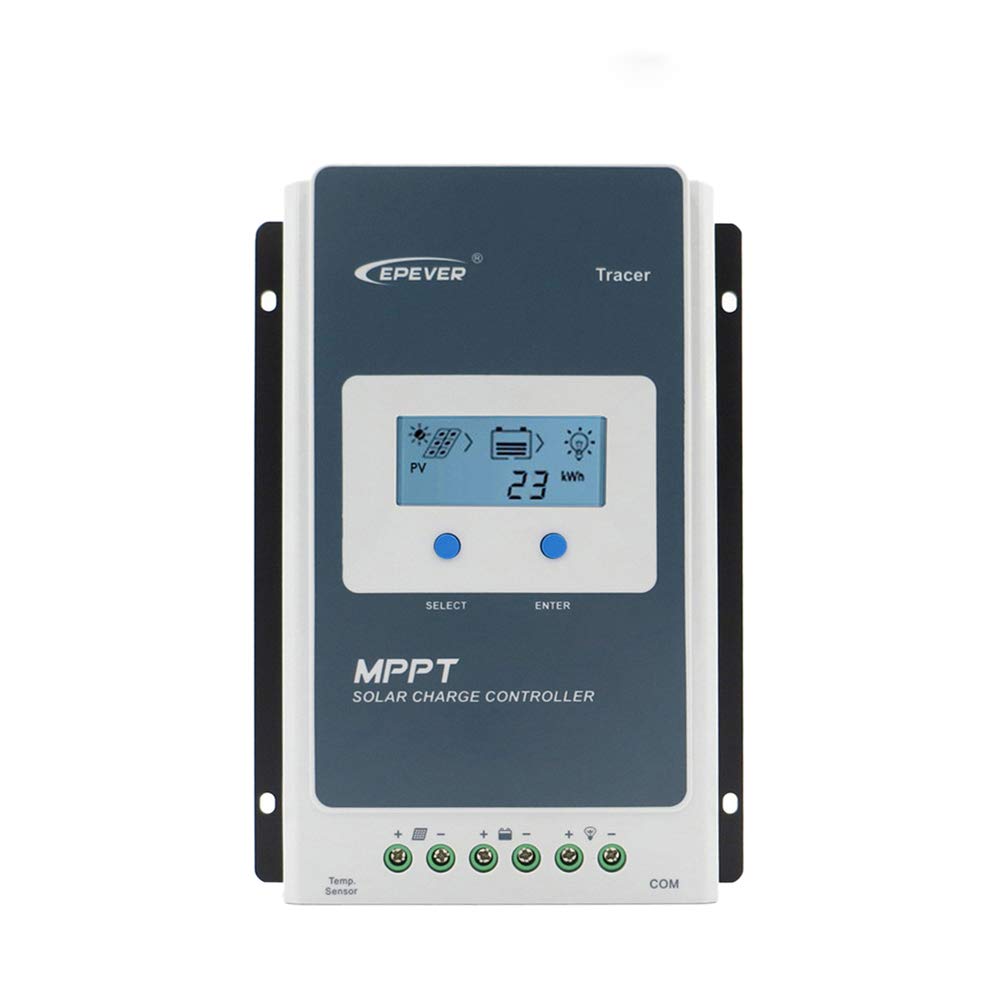

EPEVER 40A MPPT Solar Charge Controller 12V/24V Auto Voltage Detection, Negative Ground, Compatible with Lead-Acid & Lithium Batteries - Perfect for RV, Marine, Off-Grid Solar Systems

The Tracer AN series is based on common negative design and advanced MPPT control algorithm, with LCD displaying running status. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducing charging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements. With the adaptive three-stage charging mode based on a digital control circuit, Tracer AN series controllers can effectively prolong the life cycle of batteries, significantly improve the system performance and support all-around electronic protection functions, minimize damages to components of the system caused by incorrect installation or system failure at the utmost, and effectively ensure safer and more reliable operation of the solar power supply system for a longer service time. Ultra-fast tracking speed and tracking efficiencyCharging power and current limitation functionCompatible with lead-acid and lithium-ion batteriesReal-time energy statistics functionOverheating power reduction functionMultiple load work modesThe communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations. While wiring the controller do not close the circuit breaker of fuse and make sure that the leads of "+" and "-" poles are connected correctly.A fuse which current is 1.25 to 2 times the rated current of the controller, must be installed on the battery side with a distance from the battery not greater than 150 mm.If the controller is to be used in an area with frequent lightning strikes or unattended area, it must be installed an external surge arrester.If an inverter is to be connected to the system, connect the inverter directly to the battery, not to the load side of the controller. Package List:1 x Solar Charge Controller1 x User Manual Tracer1210AN Tracer2210AN Tracer3210AN Tracer4210AN Tracer5415AN Tracer6415AN Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.4 out of 5 stars 41 4.4 out of 5 stars 41 4.4 out of 5 stars 41 4.4 out of 5 stars 41 4.2 out of 5 stars 21 4.2 out of 5 stars 21 Price $58.99$58.99 $79.99$79.99 $89.99$89.99 $118.99$118.99 $208.99$208.99 $239.98$239.98 System nominal voltage 12/24VDC Auto 12/24VDC Auto 12/24VDC Auto 12/24VDC Auto 12/24VDC Auto 12/24VDC Auto Rated charge current 10A 20A 30A 40Aa 50A 60A Battery voltage range 8～32V 8～32V 8～32V 8～32V 8V～68V 8V～68V Max. PV open circuit voltage 100V/92V 100V/92V 100V/92V 100V/92V 150V/138V 150V/138V MPP voltage range (Battery voltage +2V)～72V (Battery voltage +2V)～72V (Battery voltage +2V)～72V (Battery voltage +2V)～72V (Battery Voltage +2V) ～108V (Battery Voltage +2V) ～108V Max. PV input power 130W/12V 260W/24V 260W/12V 520W/24V 390W/12V 780W/24V 520W/12V 1040W/24V 625W/12V 1250W/24V 1875W/36V 2500W/48V 750W/12V 1500W/24V 2250W/36V 3000W/48V Battery Type Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium LCD backlight time 60S (Default) 60S (Default) 60S (Default) 60S (Default) Default:60S,Range:0～999S(0S:the backlight is ON all the time) Default:60S,Range:0～999S(0S:the backlight is ON all the time) Recommended cable 12AWG(4mm²) 10AWG(6mm²) 8AWG(10mm²) 6AWG/16mm² 6AWG/16mm² 6AWG/16mm² Tracer1210AN+MT50+RS485+RTS Tracer2210AN+MT50+RS485+RTS Tracer3210AN+MT50+RS485+RTS Tracer4210AN+MT50+RS485+RTS Tracer8415 Tracer10415AN Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.7 out of 5 stars 36 4.7 out of 5 stars 36 4.7 out of 5 stars 36 4.7 out of 5 stars 36 4.2 out of 5 stars 21 4.2 out of 5 stars 21 Price $89.99$89.99 $109.98$109.98 $124.99$124.99 $148.99$148.99 $338.98$338.98 $403.99$403.99 System nominal voltage 12/24VDC Auto 12/24VDC Auto 12/24VDC Auto 12/24VDC Auto 12/24VDC Auto 12/24VDC Auto Rated charge current 10A 20A 30A 40A 80A 100A Battery voltage range 8～32V 8～32V 8～32V 8～32V 8V～68V 8V～68V Max. PV open circuit voltage 100V/92V 100V/92V 100V/92V 100V/92V 150V/138V 150V/138V MPP voltage range (Battery voltage +2V)～72V (Battery voltage +2V)～72V (Battery voltage +2V)～72V (Battery voltage +2V)～72V (Battery Voltage +2V) ～108V (Battery Voltage +2V) ～108V Max. PV input power 130W/12V 260W/24V 260W/12V 520W/24V 390W/12V 780W/24V 520W/12V 1040W/24V 1000W/12V 2000W/24V 3000W/36V 4000W/48V 1250W/12V 2500W/24V 3750W/36V 5000W/48V Battery Type Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium Sealed, Gel Flooded, User and Lithium LCD backlight time 60S (Default) 60S (Default) 60S (Default) 60S (Default) Default:60S,Range:0～999S(0S:the backlight is ON all the time) Default:60S,Range:0～999S(0S:the backlight is ON all the time) Recommended cable 12AWG(4mm²) 10AWG(6mm²) 8AWG(10mm²) 6AWG(16mm²) 4AWG/25mm² 2AWG/35mm²
