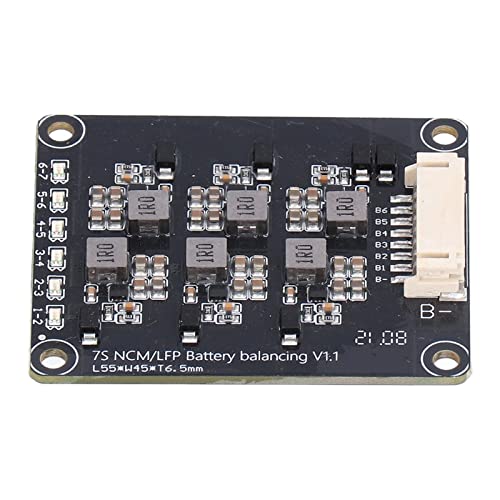

Active Equalizer 0-1.2A for Ternary Iron Lithium Batteries (7S) - Energy Transfer Board with Easy Wiring | Ideal for Solar Power Systems, RV Batteries & Energy Storage Solutions

Feature:1. Inductive Equalizer: The board is an inductive energy transfer balance board, 1.2A energy transfer lithium battery voltage balancer.2. For Balancing Voltage: Helps significantly balance the battery voltage and improve the overall efficiency of the battery pack.3. Low Resistance MOS: Built in improved ultra low internal resistance MOS, the balance current is 0‑1.2A, and the voltage difference with the battery is small.4. Low Power Consumption: Static power consumption does not exceed 20uA, with balance indicator, the smaller the pressure difference, the smaller the balance current.5. Easy Operation: When the battery error voltage is higher than 0.1V, the balancing work starts until the error stops at 30mv.How to Use:Balance Instructions: 1. When the equalization light is on, the equalization work is turned on.2. The equalization light goes out and the equalization circuit sleeps.3. The equalization light flashes, the string is dropped, or the circuit is faulty.Wiring Definition: B‑, the total negative pole of the battery pack (the negative pole of the battery)B1, the positive terminal of the first batteryB2, the positive terminal of the second batteryB3...and so onSpecification:Item Type: Active EqualizerMaterial: PCB, copperPurpose: Inductive energy transfer balance board, high current 1.2A energy transfer batter
